Product Description
Details
| Model | B-SX4 | B-SX5 |
|---|---|---|
| Technology | Thermal Transfer / direct thermal | |
| Printhead | Edge type | |
| Resolution | 8 dots/mm (203 dpi) | 12.05 dots/mm (306 dpi) |
| Print Width | Maximum 104 mm | Maximum 127.5 mm |
| Print Length | Maximum 1,498 mm | |
| Print Speed | up to 254 mm/sec (10 ips) | up to 203.2 mm/sec (8 ips) |
| Ribbon Save | Optional | Standard |
| Interfaces | 2 serial ports, Bi-directional parallel port, Expansion I/0*,PCMCIA I/F**, 10/100 Internal LAN I/F**, USB** | |
| Barcodes | UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14 | |
| 2D Codes | Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417 | |
| Fonts | Bitmap font (21 fonts), Outline font (7 fonts), Writable characters (132 fonts), Optional TrueType fonts (20 types)** | |
| Optional | Swing cutter module, rotary cutter module, strip module & rewinder***, USB Interface, built-in LAN board, Expansion I/O***, PCMCIA I/F board, RFID kit | |
| Dimensions | 291 mm (W) x 460 mm (D) x 308 mm (H) | |
| Weight | 18 kg (without media and ribbon) | 19 kg (without media and ribbon) |
Ask For More Details

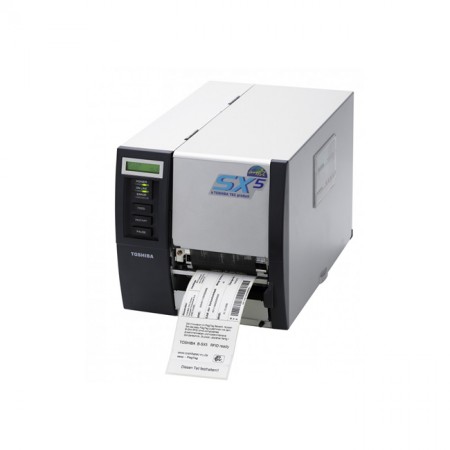

B-SX5T Thermal Printer
